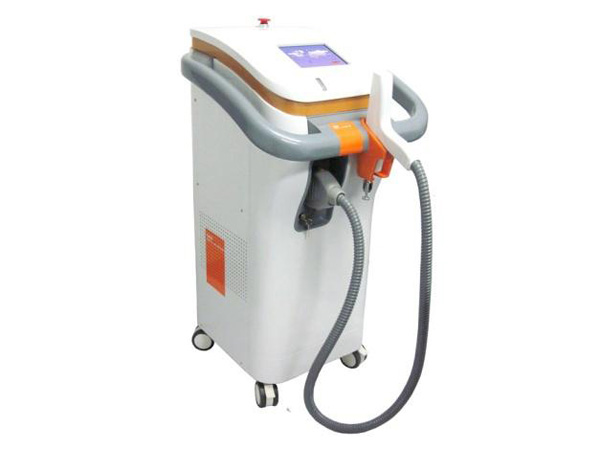

The HS-880 1540nm Er: Glass Fractional Laser Systemis a medical/aesthetic working platform. It is specially developed for Skin Resurfacing, Coagulation of Soft tissue, Acne Scares, Surgical Scars, Fine lines, Wrinkles, Striae (Stretch marks), Sun spots, Pigment, Melasma, and other clinical applications. It is capable of treating a wide variety skin type from I to VI for adapted 1540nm Er:Glass Fractiopnal laser

handpiece with two type of microbeams lens as indicated.

The two types of microbeams are:

l Handpiece lens with 100microbeams for Skin Resurfacing and Coagulation of Soft Tissue, Acne Scares

and Surgical Scars, Fine lines and Wrinkles, Striae (Stretch marks)

l Handpiece lens with 324microbeams for Skin Resurfacing and Coagulation of Soft Tissue, Sun spots,

Pigment, Melasma, Fine lines and Wrinkles, Striae (Stretch marks)

Application

Pigmentation removal: Freckle, Sun-spot, Age spots.

Rosacea improvement.

Wrinkle removal, improve skin fine lines and scarring.

Remove acne scares.

Melasma removal.

Technical specifications

Model	HS-880
Light source	1540 nm Erbium Glass Laser
Wave Length	1540 nm
MTZ Energy	70mJ/ MTZ (100), 25ml/ MTZ (300)
MTZs Density	100 MTZs/ cm2, 300 MTZs/ cm2
Pulse width	5ms, 10ms selectable
Pulse Repete rate	1Hz or Single
Operate Interface	8" True color touch screen TFT LCD
Cooling system	Air ＆Water circulation cooling system
Power supply	100/110V, 50-60Hz or 230-260V, 50-60Hz
Service	USB outlet for system Soft-ware upgrade
System Size	59cm56cm105cm(LWH)
Weight	52KGS
