Features
● Simultaneous 12 leads ECG data acquisition and display
● Simultaneous 12 leads ECG printing with 210mm/216mm thermal paper (Roll or Z-fold)
● 10 inch 800 x 480 TFT color LCD
● Alphanumeric keyboard
● Built-in rechargeable lithium battery, print up to 360 ECG reports (optional)
● Built-in 4GB SD card, save up to 10,000 ECG reports in XML format (optional)
● Pacemaker detection
● Precise ECG auto-interpretation program
● USB SLAVE port can be connected to PC-ECG software (optional)
● Connect to an external USB printer supporting PCL6 language by USB MASTER port to print12 leads ECG report on A4 paper
● Network transmission (optional)
● Software upgrade automatically via SD card

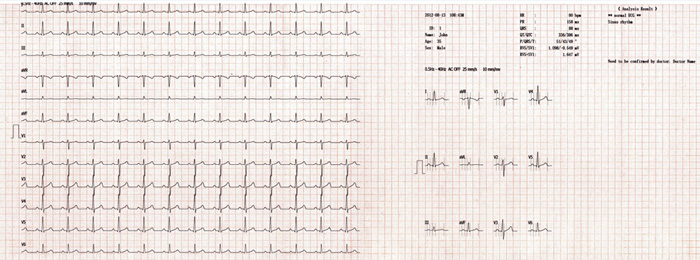

Report Sample
Specifications
|
Lead |
Standard 12 leads |
|
Input Circuit |
Built-in defibrillator protection |
|
Acquisition Mode |
Simultaneous12 leads acquisition |
|
Measurement Range |
±5mVpp |
|
Time Constant |
≥3.2s |
|
Frequency Response |
0.05Hz~150Hz (-3dB) |
|
Sensitivity |
2.5, 5, 10, 20 mm/mV |
|
Input Impedance |
≥50MΩ |
|
Input Circuit Current |
＜0.05µA |
|
Noise Level |
＜15µVp-p |
|
Anti Baseline Drift |
Automatic |
|
Patient Current Leakage |
＜10µA (220V-240V) |
|
Filter |
EMG Filter 30/ 40Hz
DFT Filter 0.05/ 0.15/ 0.25/ 0.5Hz
AC Filter 50/ 60Hz
|
|
CMRR |
98dB |
|
Recording Mode |
Automatic: 12CH×1, 6CH×2, 6CH×2+1R, 3CH×4+1R 3CH×4, 3CH×4+3R
Manual: 12CH, 6CH, 3CH, 2CH, 1CH
Rhythm: Any lead selectable
|
|
Recording System |
Thermal matrix printing |
|
Recording Paper |
Roll: 216mm×30m, 210mm×30m
Z-fold:210mm×295mm×200 sheets
|
|
Paper Speed |
6.25, 12.5, 25, 50mm/s |
|
Display |
800×480 pixel TFT LCD |
|
Interface |
Network interface, USB Master/Slave, SD card |
|
Safety Standard |
IEC I/CF |
|
Sample Rate |
Normal: 1000sps/channel
Pacemaker: 10,000sps/channel
|
|
Pacemaker Detection |
≥± 2 mV ≥± 0.1 ms |
|
Dimension |
435mm×335mm×98mm |
|
Weight |
4Kg（include battery） |
|
Power Supply |
AC: 100~240V, 50/60Hz, 70VA~100VA
DC: 14.8V/4400mAh, built-in lithium battery
|
